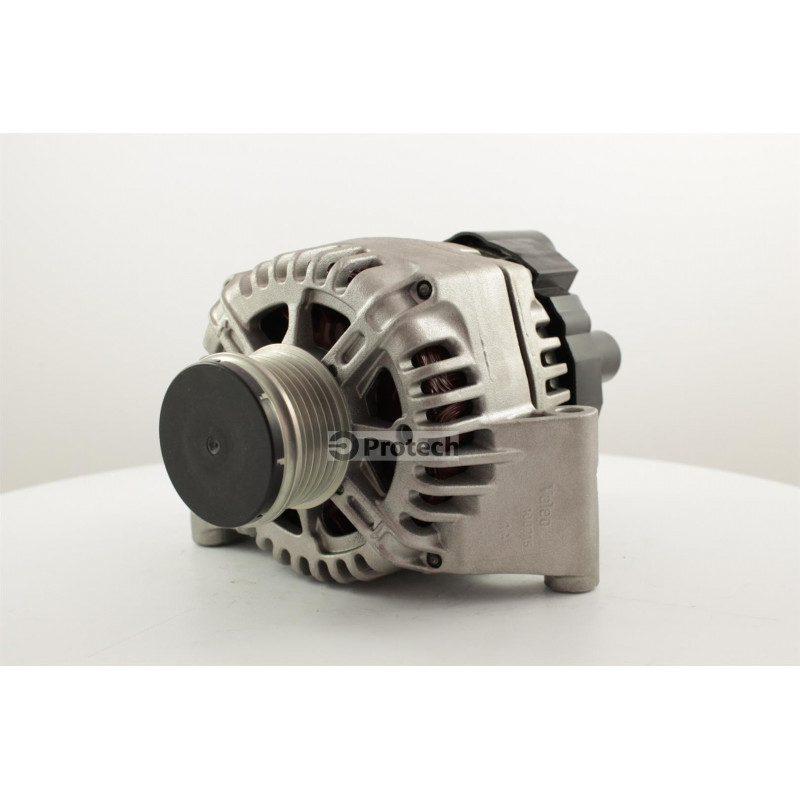

alternateur

Réf : IR6514

Caractéristiques

Prise: C04
Voltage: 12 V
Nombre trous pour fixations: 3
Amperage: 90
Type poulie: P6D
Position des trous de fixations: 6H00
Plug: C04

Schéma de la prise

C04

Alternatives à : IR6514

Référence

Alternative

Différence

Commentaire

IR6514

IR7397

Pulley without clutch

Attention

IR6514

IR6426

75A

Attention

IR6514

IR6696

105A

IR6514

IR7913

120A. DFM conncetion

IR6514

IR6113

120A

IR6514

IR5963

75A

Attention

IR6514

IR6515

75A Pulley without clutch

Attention

IR6514

IR5507

105A Pulley without clutch PV6/54

Attention

Numéros des producteurs (OE et OEM)
Applications

BOSCH

0124225063 0986048771

CARGO

113722 115963

DENSO

1012101120 1012101121 1012101190 1012101191 1012101192 DAN1002 DAN1033 DAN996

FIAT

46823547 51784845 51787209 51805800 51854910 51854915 51984055 52003517 55185076 6204291 63358061 63358062 703000096 71794523 71794527 71795805

FORD

1571297 9S5110346CA 9S5110346CB 9S5110346DB 9S51CA 9S51CB

LUCAS

LRA02792 LRA02804 LRA2792

MOTOROLA

2542670 2542670A 2542670B

OPEL

13117279 13117279YQ 13243463 13283344 6204181 6204191 6204261 93193612

REMY

DA5354 DRA4243 DRA4244 DRA4253 DRA4254 RAA15355

SUZUKI

3140085E00 31400T85E00

TRANSPO

23923N

VALEO

2543477 2623613 437474 437504 439505 439524 TG9S010 TG9S015 TG9S016 TG9S021 TG9S022 TG9S026 TG9S036 TG9S140

CEVAM

4753 4753 4732

DASILVA

10716 10716 10741

SOREA

56859

ELSTOCK

284921

HCPARTS

CA1862IR

MAGNETIMARELLI

063358061010 063377019010 063377022010 063731862010 63377019 943318621010 944390901960 MAN1097 MARC1862 MRA90196

Vehicule

Modèle

Type

Date

Moteur

OPEL

ASTRA H

1.3 CDTI

01.2005/12.2010

D Z13DTH

OPEL

CORSA C

1.3 CDTI

01.2003/12.2006

D Z13DT

OPEL

TIGRA B

1.3 CDTI

01.2005/

D Z13DT

SUZUKI

IGNIS

1.3 DDiS

01.2003/

D Z13DT

SUZUKI

WAGON R+

1.3 DDiS

01.2004/

D Z13DT

SUZUKI

SWIFT III

1.3 DDiS (SG)

01.2005/

D Z13DT

OPEL

AGILA A

1.2

01.2000/12.2004

E Z12XE

OPEL

ASTRA H

1.4

01.2004/12.2005

E Z14XEL

OPEL

ASTRA H

1.4

01.2004/12.2010

E Z14XEP

ALFA ROMEO

ALFA MITO

1.3 JTDM (955) AC

01.2008/

D 199A3.000

ALFA ROMEO

ALFA MITO

1.3 JTDM (955) AC

01.2009/

D 199B1.000

CITROËN

NEMO

1.3 HDi

01.2010/

D FHZ (F13DTE5)

FIAT

500

1.3 JTD AC

01.2007/

D 169A1.000

FIAT

DOBLO

1.3 JTD (119)

01.2006/

D 223A9.000

FIAT

DOBLO

1.3 JTD (223) AC

01.2004/

D 188A9.000

FIAT

FIORINO

1.3 D Multijet

01.2008/

D 199A2.000

FIAT

GRANDE PUNTO

1.3 JTD (199) A

01.2005/

D 199A2./A3.

FIAT

GRANDE PUNTO

1.3 JTD (199)

01.2005/

D 199A.000

FIAT

IDEA

1.3 JTD AC

01.2004/

D 188A9.000

FIAT

IDEA

1.3 JTD AC

01.2005/

D 199A3.000

FIAT

LINEA

1.3 JTD AC

01.2007/

D 199A3.000

FIAT

PANDA

1.3 JTD (169) AC

01.2004/

D 188A9.000

FIAT

PANDA

1.3 JTD

01.2006/

D 169A1.000

FIAT

PUNTO III

1.3 JTD AC

01.2003/

D 188A9.000

FIAT

QUBO

1.3 D Multijet

01.2008/

D 199A2.000

FIAT

STRADA

1.3 JTD (178E)

01.2006/

D 223A9.000

FORD

KA II

1.3 TDCi

01.2008/12.2010

D FD4

LANCIA

MUSA

1.3 JTD AC

01.2004/

D 188A9.000

LANCIA

MUSA

1.3 JTD AC

01.2006/

D 199A3.000

LANCIA

YPSILON

1.3 D Multijet

01.2006/

D 199A2/3.000

LANCIA

YPSILON

1.3 JTD AC

01.2003/

D 188A9.000

LANCIA

YPSILON

1.3 JTD

01.2003/12.2006

D 188A4.000

OPEL

AGILA A

1.3 CDTI

01.2003/12.2008

D Z13DT

OPEL

ASTRA H

1.6

01.2007/12.2010

E Z16XER

OPEL

COMBO

1.3 CDTI

01.2004/

D Z13DT Z13DTJ

OPEL

COMBO

1.3 CDTI

01.2005/

D Z13DTJ

OPEL

ZAFIRA B

1.6

01.2005/

D Z16XE..

PEUGEOT

Bipper

1.3 HDi

01.2010/

D F13DTE5 (199A9.000)

SUZUKI

SPLASH

1.3 DDiS

01.2008/

D Z13DTJ
