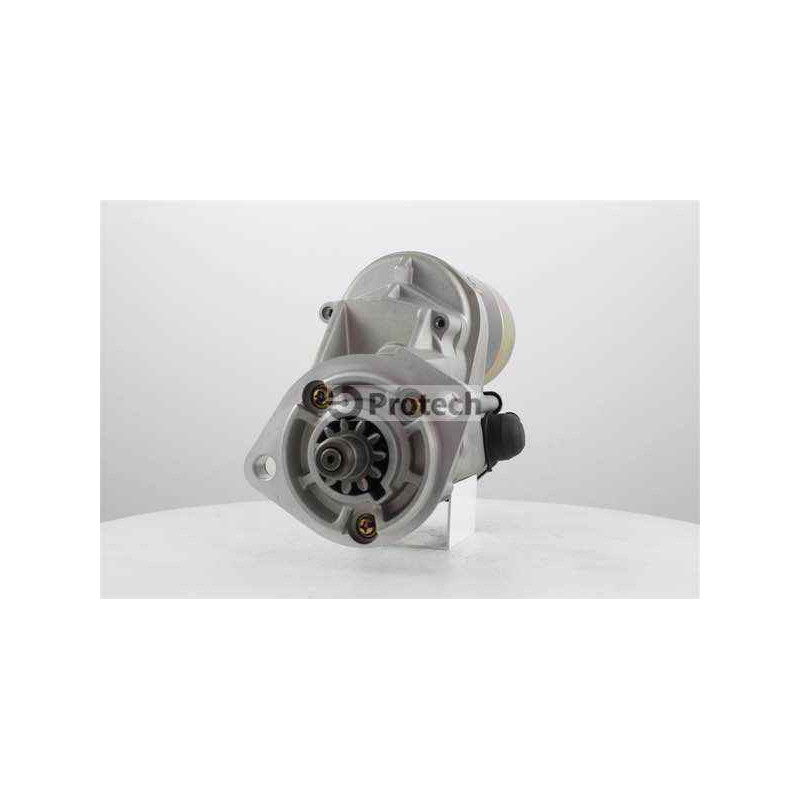

Démarreur
Réf : IR8177
Caractéristiques
- Drive distance, mm
- 16
- Gear type
- GR
- Length, mm
- 295
- Mounting flange diameter, mm
- 90
- No./mount. holes
- 2TRF / 0
- Number of teeth
- 11
- Prise
- C069
- Power, KW
- 4.50 KW
- Rotation
- CW
- Voltage
- 24 V
- Plug
- C069
Schéma de la prise
TOYOTA
DASILVA
ELSTOCK
SOREA
CARGO
REMY
HCPARTS
Vehicule
Modèle
Type
Date
Moteur
TOYOTA FORK LIFT
5FD23
FORK LIFT
01.1986/12.1994
D 1Z
TOYOTA FORK LIFT
5FD25
FORK LIFT
01.1986/12.1994
D 1Z
TOYOTA FORK LIFT
5FD28
FORK LIFT
01.1986/12.1994
D 1Z
TOYOTA FORK LIFT
5FD30
FORK LIFT
01.1986/12.1994
D 1Z
TOYOTA FORK LIFT
4FD20
FORK LIFT
01.1978/12.1986
D 2J
TOYOTA FORK LIFT
4FD23
FORK LIFT
01.1978/12.1986
D 2J
TOYOTA FORK LIFT
4FD25
FORK LIFT
01.1978/12.1986
D 2J
TOYOTA FORK LIFT
5FD20
FORK LIFT
01.1986/12.1994
D 1Z
TOYOTA FORK LIFT
5FD33
FORK LIFT
01.1988/12.1994
D 11Z
TOYOTA FORK LIFT
5FD35
FORK LIFT
01.1988/12.1994
D 11Z
TOYOTA FORK LIFT
5FD40
FORK LIFT
01.1988/12.1994
D 11Z
TOYOTA FORK LIFT
5FD45
FORK LIFT
01.1988/12.1994
D 11Z
TOYOTA FORK LIFT
5FD50
FORK LIFT
01.1990/12.1996
D 12Z
TOYOTA FORK LIFT
5FD50
FORK LIFT
01.1996/
D 14Z
TOYOTA FORK LIFT
5FD60
FORK LIFT
01.1990/12.1996
D 12Z
TOYOTA FORK LIFT
5FD60
FORK LIFT
01.1996/
D 14Z
TOYOTA FORK LIFT
5FD70
FORK LIFT
01.1990/12.1996
D 12Z
TOYOTA FORK LIFT
5FD70
FORK LIFT
01.1996/
D 14Z
TOYOTA FORK LIFT
6FD20
FORK LIFT
01.1994/12.1998
D 2Z
TOYOTA FORK LIFT
6FD23
FORK LIFT
01.1994/12.1998
D 2Z
TOYOTA FORK LIFT
6FD25
FORK LIFT
01.1994/12.1998
D 2Z
TOYOTA FORK LIFT
6FD28
FORK LIFT
01.1994/12.1998
D 2Z
TOYOTA FORK LIFT
6FD30
FORK LIFT
01.1994/12.1998
D 2Z
