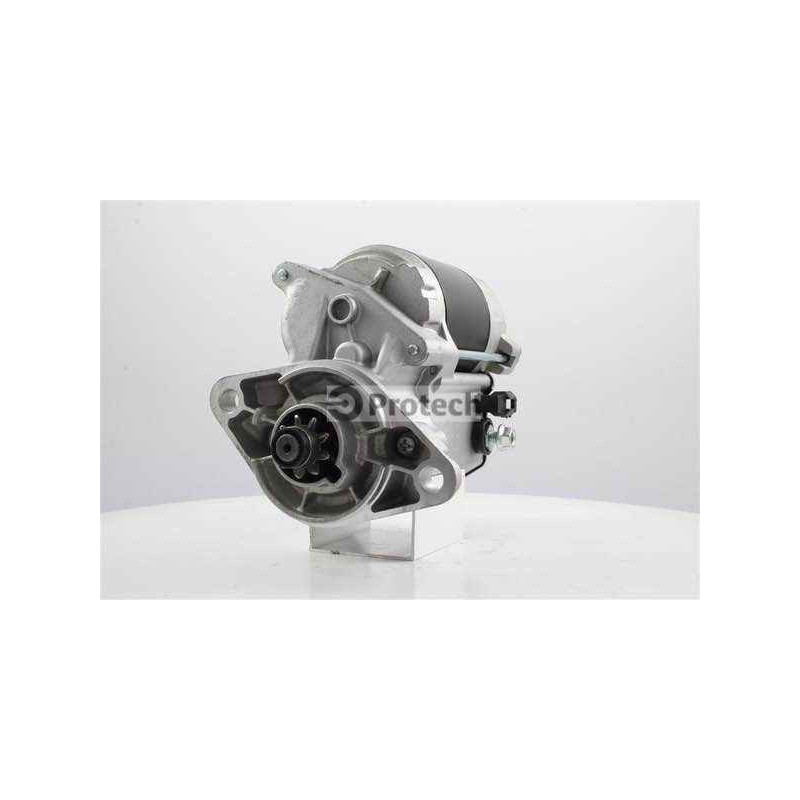

Démarreur
Réf : IR9122
Caractéristiques
- Drive distance, mm
- 20,00
- Gear type
- GR
- Length, mm
- 189.3
- Mounting flange diameter, mm
- 74
- No./mount. holes
- 2TRF / 0
- Number of teeth
- 9
- Prise
- C096
- Power, KW
- 1.40 KW
- Rotation
- CW
- Voltage
- 12V
- Plug
- C096
Schéma de la prise
TOYOTA
CEVAM
CARGO
LUCAS
VALEO
HCPARTS
Vehicule
Modèle
Type
Date
Moteur
TOYOTA FORK LIFT
3FG50
FORK LIFT
01.1983/12.1990
D 2F
TOYOTA FORK LIFT
3FG60
FORK LIFT
01.1983/12.1990
D 2F
TOYOTA FORK LIFT
5FG10
FORK LIFT
01.1986/12.1994
D 4Y
TOYOTA FORK LIFT
5FG14
FORK LIFT
01.1986/12.1994
D 4Y
TOYOTA FORK LIFT
5FG28
FORK LIFT
01.1986/12.1994
D 4Y
TOYOTA FORK LIFT
5FG30
FORK LIFT
01.1986/12.1994
D 4Y
TOYOTA FORK LIFT
5FG33
FORK LIFT
01.1988/12.1994
D 3F
TOYOTA FORK LIFT
5FGL10
FORK LIFT
01.1986/12.1989
D 4P
TOYOTA FORK LIFT
5FGL10
FORK LIFT
01.1986/
D 5R
TOYOTA FORK LIFT
5FGL14
FORK LIFT
01.1986/
D 5R
TOYOTA FORK LIFT
5FGL15
FORK LIFT
01.1986/
D 5R
TOYOTA FORK LIFT
5FGL18
FORK LIFT
01.1986/
D 5R
TOYOTA FORK LIFT
5FGL20
FORK LIFT
01.1986/
D 5R
TOYOTA FORK LIFT
FGS20
FORK LIFT
01.1986/12.1994
D 5R
TOYOTA
4-RUNNER
2.4
01.1987/12.1996
D 2366ccm 22R
