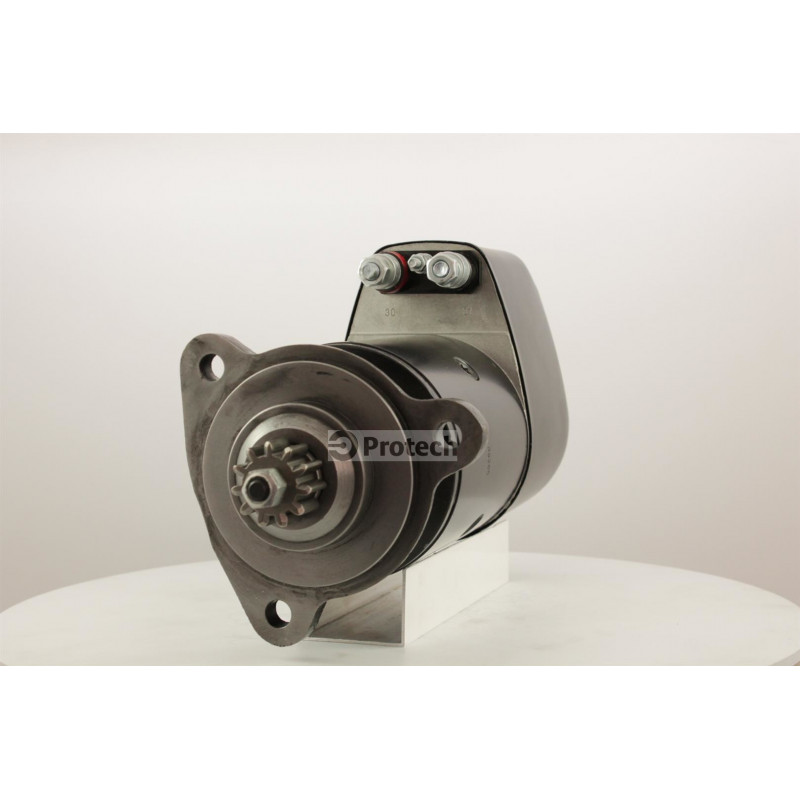

Démarreur
Réf : IR9265
Caractéristiques
- Drive distance, mm
- 47.5
- Gear type
- DD
- Length, mm
- 387
- Mounting flange diameter, mm
- 110
- No./mount. holes
- 3TRF / 0
- Number of teeth
- 11
- Prise
- C100
- Power, KW
- 5.40 KW
- Rotation
- CW
- Voltage
- 24 V
- Plug
- C100BIS
Schéma de la prise
BOSCH
DASILVA
ELSTOCK
SOREA
CARGO
LUCAS
REMY
HCPARTS
Vehicule
Modèle
Type
Date
Moteur
DAF
95.310 ATI
95.310 ATI
01.1987/12.1997
D WS225
DAF
95.330 ATI
95.330 ATI
01.1990/12.1997
D WS242
DAF
95.350 ATI
95.350 ATI
01.1987/12.1997
D WS259
DAF
95.360 ATI
95.360 ATI
01.1990/12.1997
D WS268...
DAF
95.380 ATI
95.380 ATI
01.1987/12.1997
D WS282L
DAF
95.400 ATI
95.400 ATI
01.1990/12.1997
D WS295...
DAF
95.430 ATI
95.430 ATi
01.1992/12.1997
D 220004
