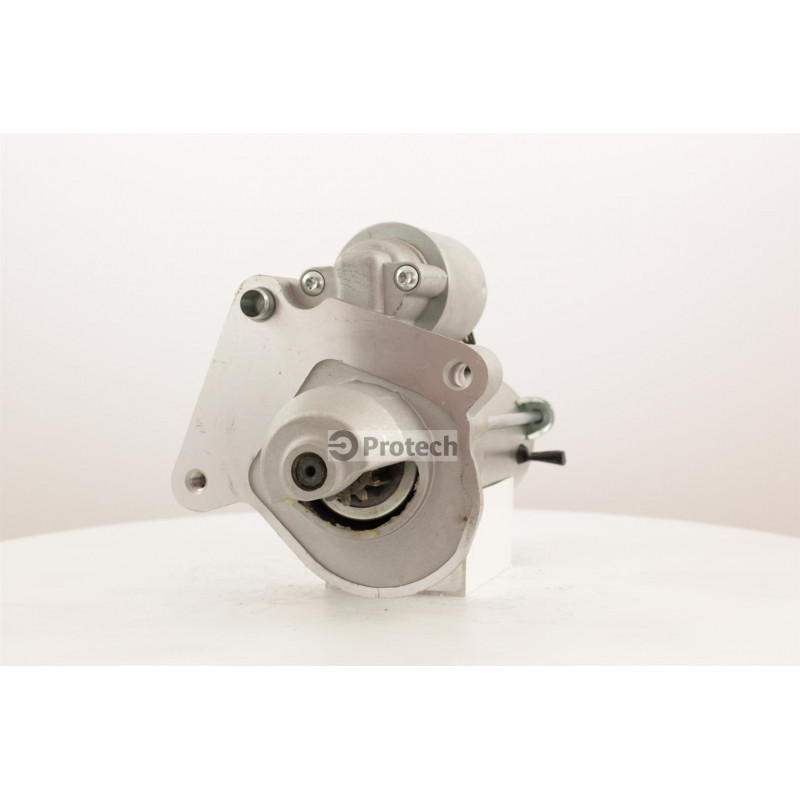

Démarreur
Réf : IR9699
Caractéristiques
- Drive distance, mm
- 14
- Gear type
- GR
- Length, mm
- 200.3
- Mounting flange diameter, mm
- 63.5
- No./mount. holes
- 3TRF / 1
- Number of teeth
- 11
- Prise
- C014
- Power, KW
- 1.20 KW
- Rotation
- CW
- Voltage
- 12V
- Plug
- C014
Schéma de la prise
FORD
MAZDA
CEVAM
DASILVA
ELSTOCK
CARGO
LUCAS
REMY
VISTEON
HCPARTS
Vehicule
Modèle
Type
Date
Moteur
FORD
Focus III (CEW)
1.5 TDCi
01.2014/
D 1499ccm XWD. XXD.
MAZDA
3 II (BL)
1.6 MZR CD
01.2009/
D 1560ccm Y601
MAZDA
5 II (CW)
1.6 CD
01.2010/
D 1560ccm Y6
VOLVO
C30
1.6 D2
01.2010/
D 1560ccm D4162T
VOLVO
S40 II (MS)
1.6 D2
01.2011/12.2012
D 1560ccm D4162T
VOLVO
V50
1.6 D2
01.2010/
D 1560ccm D4162T
FORD
C-Max II (CEU)
1.5 TDCi
01.2015/
D 1499ccm AEDA XWDA XWDB XXDA XXDC
FORD
C-MAX
1.6 TDCi
01.2007/12.2010
D 1560ccm 66/80kW
FORD
C-MAX
1.6 TDCi
01.2010/
D 1560ccm T3DA T3DB
FORD
FOCUS C-MAX
1.6 TDCi
01.2003/12.2007
D 1560ccm HHDA
FORD
FOCUS I
1.6 TDCi
01.2003/
D 1560ccm G8DA
FORD
Focus II (DA)
1.6 TDCi
01.2004/12.2010
D 1560ccm GP.. HH.. G8..
FORD
Focus III ()
1.6 TDCi
01.2011/
D 1560ccm T.DA T.DB NGDA
FORD
Grand C-Max ()
1.5 TDCi
01.2015/
D 1499ccm XWDA XWDB XXDA XXDC
FORD
GRAND C-MAX
1.6 TDCi
01.2010/
D 1560ccm T1DA
FORD
Tourneo Connect ()
1.6 TDCi
01.2013/
D 1560ccm T1GA TZG. UBGA
FORD
Transit Connect ()
1.6 TDCi
01.2013/
D 1560ccm T1GA TZG. UBGA
MAZDA
3
1.6 DI (BK)
01.2003/
D 1560ccm Y601
VOLVO
C30 ()
2.0 D
01.2006/12.2012
D 1998ccm D4204T
VOLVO
C30
1.6 D
01.2006/
D 1560ccm D4164T
VOLVO
S40 II (MS)
2.0 D
01.2004/12.2010
D 1998ccm D4204T D4204T2
VOLVO
S40 II
1.6 D
01.2005/
D 1560ccm D4164T
VOLVO
V50 (MW)
2.0 D
01.2004/12.2010
D 1998ccm D4204T D4204T2
VOLVO
V50
1.6 D
01.2004/12.2010
D 1560ccm D4164T
VOLVO
V70 III ()
1.6 D
01.2010/12.2011
D 1560ccm D4164T
VOLVO
V70 III ()
1.6 D2
01.2011/
D 1560ccm D4162T
